商品の詳細:
|
| 機械名: | 張力試験装置 | 機械: | コンピュータ付き、治具を剥がす |
|---|---|---|---|
| 規格: | ISO37、ASTM624B | 保証: | 1年 |
| 抗張範囲: | 5kgまたは150kg（センサー2個付属） | 電源: | AC 220V、50Hz |
| サイズ (L x W x H): | 500mm×600mm×800mm | 重さ: | 150kg |
| ハイライト: | ASTM D903 tensile testing machine,servo tensile testing machine with peel fixture,peel off fixture tensile tester |
||

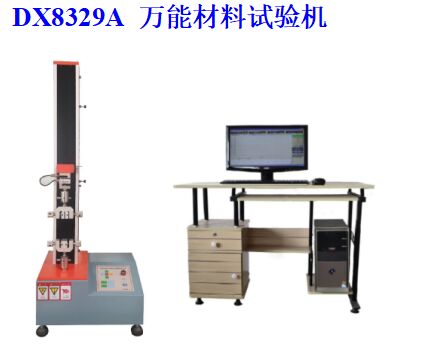

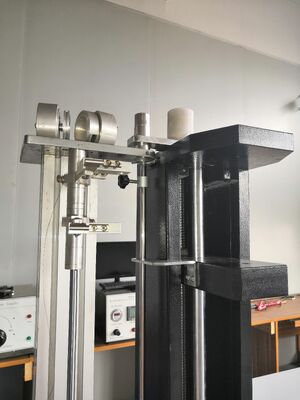

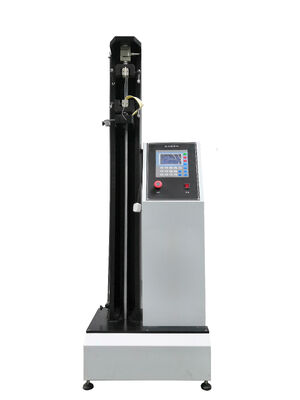

ASTM D903 Servo Tensile Testing Machine with Peel off fixture
1, Scope of application:
Widely applicable, suitable for industries such as rubber, plastic, wire and cable, footwear, leather, textile, papermaking, and metal copper aluminum wire, aluminum foil, etc; Can test the tensile strength, elongation, tear force, adhesion force, peel force, shear force, adhesion force, connection force, etc. of the sample. Using high-precision sensors to achieve high precision in sensing force; The elongation and tensile strength meet the standard ISO37; Tear resistance should refer to the standard ASTM624B.
2, Compliant with standards:
Meets the testing standards of ISO37, ASTM624B, UL1581, IEC 811, and UL817.
3. Technical Parameters / Specifications:
| Category | Parameter | Details / Value |
|---|---|---|
| General | Tensile Range | 5 kg or 150 kg (2 sensors included) |
| Maximum Travel | 400 mm | |
| Load Accuracy | ±0.5% | |
| Load Resolution | 0.01 g | |
| Unit Conversion | kg/lb or g/N | |
| Peak Lock Function | Yes | |
| Motor & Drive | Primary Motor | Panasonic Servo Motor (400W) |
| Speed Regulation Motor | AC Motor with Variable Frequency Drive | |
| Speed Control | Infinite Regulation Range | 0.1 ~ 500 mm/min |
| Preset Gear Speeds | 50, 100, 250, 350, 500 mm/min (freely switchable) | |
| Speed Accuracy | 50±0.5 mm/min, 500±1.0 mm/min | |
| Measurement | Induction Method | High-precision Sensor |
| Application Tool | Pressure Plate Tool | Diameter: 5 cm (Suitable for compression ratio testing) |
| Experiment Speed (for tool) | 0.5 ~ 500 mm/min | |
| Power & Dimensions | Power Supply | AC 220V, 50Hz |
| Body Size (L x W x H) | 500 mm x 600 mm x 800 mm |

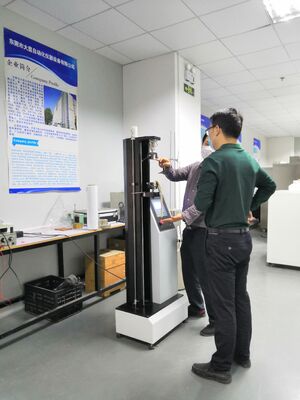

Welcome to visit our factory for sightseeing!
| Supplier Company Name | Dongguan Daxian Instrument Equipment CO.,Limited |
| Company Address | Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China |
| Contact Person | Sophia Su |
| Mobile Number | 86-13266221899 |
| 15024082385 |
