商品の詳細:
|
| 適用範囲: | 垂直に設置されたバンドルワイヤとケーブル | 規格: | IEC60332-3-10-2000 |
|---|---|---|---|
| 燃焼箱寸法: | 1120(W)×2195(D)×5077(H)mm | コントロールボックスの寸法: | 1280(幅)×770(奥行き)×1200(高さ)mm |
| 電源: | AC220V、50/60Hz、2A | 空気源: | プロパン、空気（お客様にてご用意） |
| 鋼製はしごの材質: | SUS304ステンレス丸鋼 | デジタル温度計: | 0〜400 °C |
| ハイライト: | wire combustion testing equipment,cable lab testing machine,laboratory wire combustion analyzer |
||
Wire & Cable Bundle Combustion Tester
Scope of application:

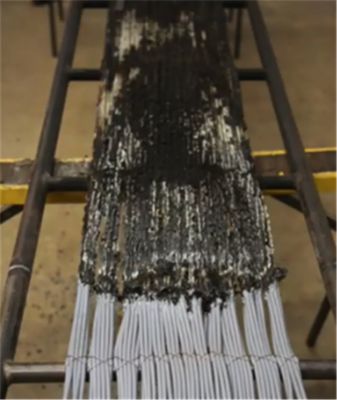

It is used to evaluate the ability of vertically installed bundled wires and cables or optical cables to inhibit the vertical spread of flames under specified conditions, and the use process needs to cooperate with smoke dust removal towers. The whole machine is composed of several parts, such as a test chamber, an air source, a steel ladder, an emission purification system, and an ignition source.
Conform to the standard:
As per standard IEC60332-3-10- 2000.
Technical Parameters:
1. Test chamber
2. Air source
3. Steel ladder type
4. Discharge purification device
Technical Parameters:

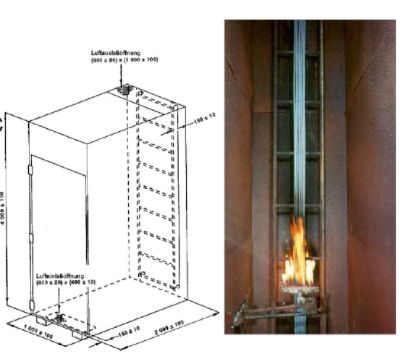

1. The size of the test box is 1,000 (W) X2,000 (D) X4,000 (H) mm, and the middle is filled with mineral wool material box
2. The bottom of the box is 150 mm away from the front wall, and there is an air intake space of 800 (W)X400 (D)mm.
3. The top exhaust space is 300 (W) X 1,000 (D) mm.
4. Wide stainless steel ladder size 500 (W) X3,500 (H), 1 piece
5. Standard stainless steel ladder size 800 (W) X3,500 (H), 1 piece

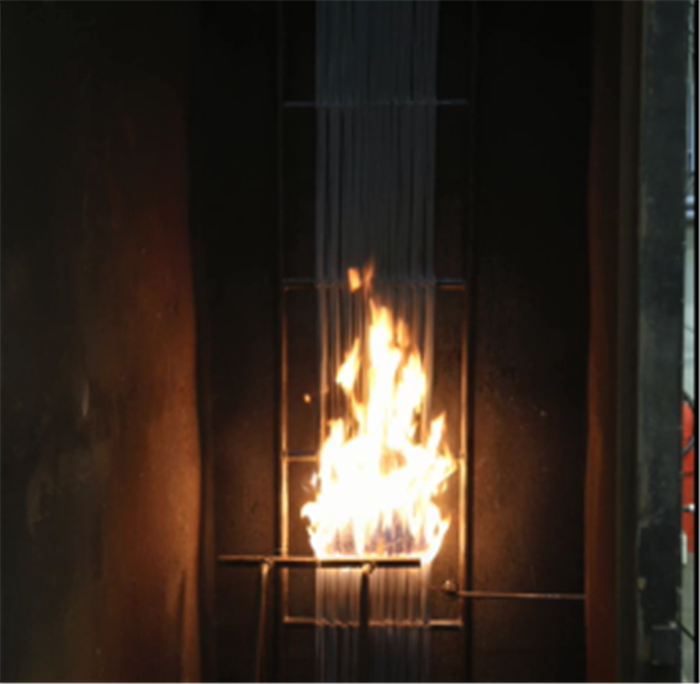

6. 2 strip standard propane burner devices
7. 2 venturi gas mixing devices
8. The pressure gauge and pressure reducing valve device can adjust the propane and air pressure to 0.1Mpa
9. The rotameter adjusts and sets the gas flow rate

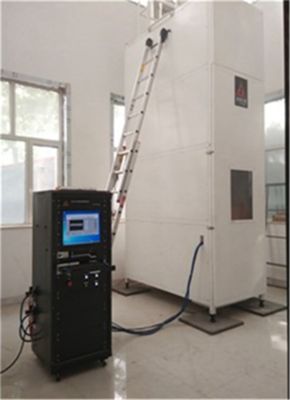

10. The box provides steel ladders and railings, which are convenient for users to detect at the top
11. Equipped with a ball valve to manually close the air source
12. Automatically set the combustion test time, and automatically cut off the gas source at that time
13. The thermocouple on the inner wall of the box can display the internal temperature of the box

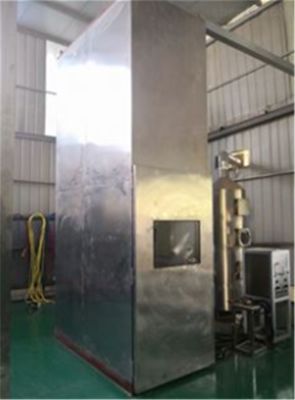

14. Combustion box dimensions: 1120 (W) X2195 (D) X5077 (H) mm
15. Control box dimensions: 1280 (W) X770 (D) X1200 (H) mm
16. Power supply: AC 220V, 50/60Hz, 2A
17. Air source: propane, air (provided by the customer).
