Voltage Withstand Tester / Voltage Breakdown

Name: Voltage Withstand Tester / Voltage Breakdown
Brand: DONGGUAN DAXIAN INSTRUMENT EQUIPMENT CO.,LTD
Price: 1.00 USD
Availability: InStock

すべての製品

火の試験装置
(287)

燃焼性の試験装置
(134)

建築材の試験装置
(64)

Lab Testing Machine
(76)

Insulation Testing Machine
(110)

プラスチック試験装置
(131)

ゴム試験装置
(100)

ワイヤー試験装置
(240)

PCBテスト機械
(5)

防火効力のある試験機
(13)

環境試験室
(61)

煙濃度の部屋
(14)

引張試験機
(22)

マスクのテスター
(42)

おもちゃの試験装置
(18)

レーザーの距離計
(10)

産業オートメーション装置
(45)

認証

顧客の検討

私が機械を買う前に、私は私達のパートナーが受け取りますそれを、すべてよいですあなたの機械を、の後で使用するのを見ます。ありがとう、希望は取り引きに次の時間をしますも。

—— 最高意志

私が、それ心配する始めにあなたの会社が時間の配達できればあなたの会社をよいですの遅れ、Aの気持が良い共同ひっくり返しません。

—— ピーター黄

素晴らしい協同! 私達は私達のプロジェクトのあなたの会社の親切なサポートのために認めました。非常によいサービス。

—— Hussain氏

私達が時機を得た商品を受け取るように専門の引用語句、専門の技術、信頼できる企業。希望私達はまだ次の時間協力してもいいです!

—— ポールギャリー氏

オンラインです

Voltage Withstand Tester / Voltage Breakdown

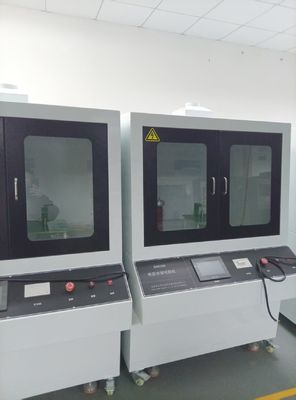

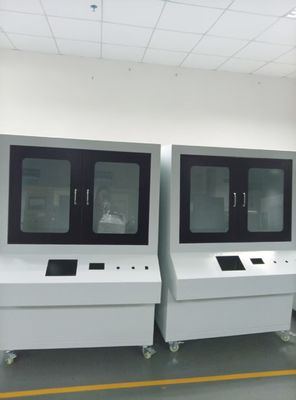

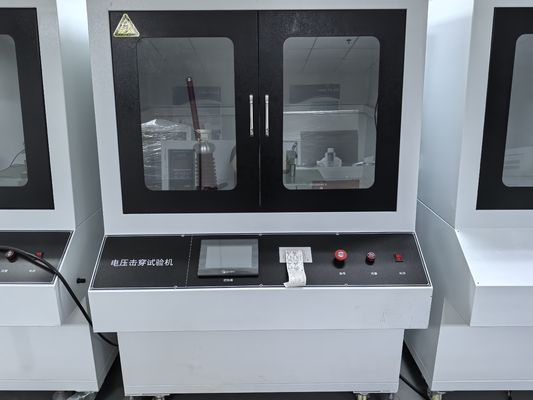

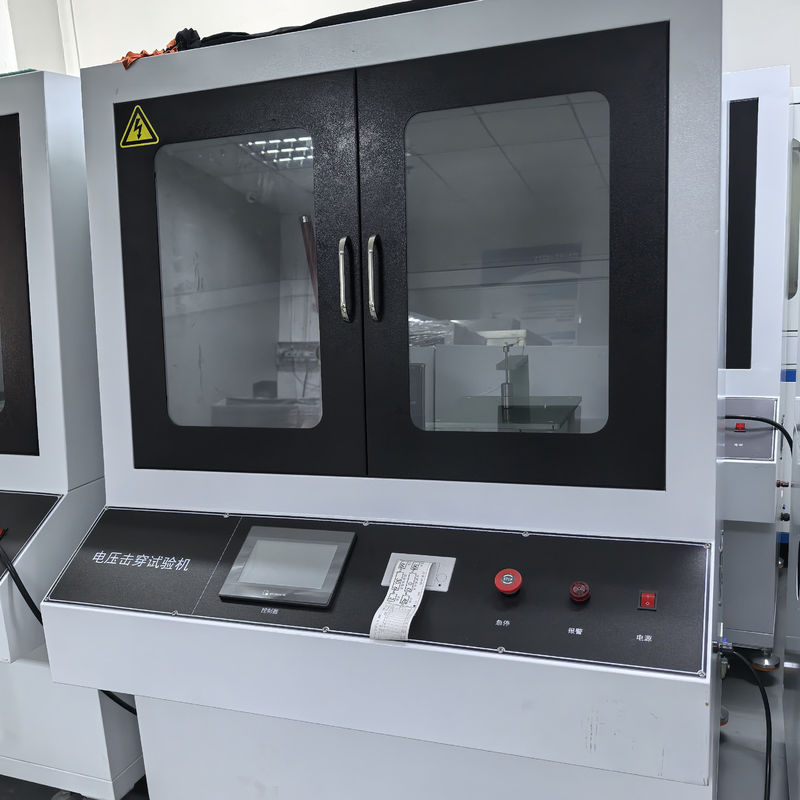

大画像 : Voltage Withstand Tester / Voltage Breakdown

商品の詳細: お支払配送条件:

価格:	CN¥35,714.50/boxes 1-1 boxes

連絡先

Voltage Withstand Tester / Voltage Breakdown

説明

保証:	1 年	カスタマイズされたサポート:	OEM、ODM、OBMのソフトウェアリエンジニアリング
産地:	中国広東省	brand name:	DAXIAN
パワー:	5KVA	正確さ:	≤ 5%
電圧:	220V	種類:	試験機
保護クラス:	IP65	流出電流の選択:	1〜20mA
流出電流:	30mA未満	体重:	200kg
変圧器容量:	10KVA	電圧測定の正確さ:	≤ 5%
出力電流:	100mA	電源周波数:	サイナス波50Hz
増加率:	0.4kV/秒から10kV/秒	断定電圧:	0～50kV
テスト方法:	DCテスト,ACテスト
ハイライト:	Voltage Withstand Tester , Voltage Breakdown Tester

Company Profile

DAXIAN INTERNATIONAL EQUIPMENT CO., LTD is Located in Dongguan City, Guangdong Province, China, we are a high tech enterpris which is specialized in development and manufacturing, The most professional OEM manufacturer in the country,we mainly produce Fire Testing Equipment, Construction Materials Testing Equipment, Plastic Testing Equipment, Wire Testing Equipment, Environmental Test Chamber, Tensile Testing Machine, and others DAXIAN's testing equipment is widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electronics, LEDs, photoelectricity, mobile, plastic rubber, telecommunications, chemical industry, aerospace, building materials and products, wire and cable, textile and fabric, etc
. All DAXIAN testing equipment is designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN, and so on

Products Description

Specification

Item	Value
Warranty	1 YEAR
Customized support	OEM, ODM, OBM, Software reengineering
Place of Origin	China
	Guangdong
Brand Name	DAXIAN
Model Number	DX8413
Power	Electronic
External dimensions	800 l W700 1350mm h
Electrode weight	50G
Electrode	Electrode weight
Input voltage	AC 220 V
Test method	Test methodTest method5,
Electrical capacity:	1.5 KVA
Test current:	10MA-20MA-30MA-40MA optional
Current control accuracy	± 10%
Arc on/off time error:	<5ms

Equipment standard: 1. GB1408.1-2006 "Test Methods for Electrical Strength of Insulation Materials" 2. GB1408.2-2006 "Test Methods for Electrical Strength of Insulation Materials Part 2: Additional Requirements for Application of DC Voltage Test 3. GB/T1695-2005 "Determination method for power frequency breakdown voltage strength and withstand voltage of vulcanized rubber" 4. ASTM D149 "Test Method for Dielectric Breakdown Voltage and Dielectric Strength of Solid Electrical Insulation Materials at Industrial Power Supply Frequency"

product overview： This testing machine is suitable for measuring the breakdown strength and withstand time of solid insulation materials such as plastics, films, resins, mica, ceramics, silicone, glass, insulation paints, etc. in air or liquid media at power frequency (48-62Hz) or corresponding DC voltage.

Scope of application: Suitable for continuous and uniform voltage boosting or step-by-step voltage boosting, apply AC/DC voltage to the sample until breakdown, measure the breakdown voltage value, and calculate the breakdown strength of the sample; Using a rapid voltage boost method, raise the voltage to the specified value and maintain it for a certain period of time until the sample does not break down. Set the specified value at this time as the withstand voltage value of the sample.

Main technical parameters of the instrument: 1. Test voltage: AC 0~50 kV continuously adjustable DC 0~50 kV continuously adjustable 2. Transformer capacity: 10 KVA 3. Breakdown voltage: 0~50kV 4. Boosting speed: divided into 10 gears: 50, 100, 200, 500, 1000, 2000 (KV/S) 5. Boost speed regulation: for electrical automatic speed regulation 6. Voltage measurement accuracy: ≤ 5％ 7. Leakage current selection: 1-20 mA 8. Test methods: DC test, AC test 9. Boosting method: automatic programmable boosting 10. Power frequency: 50Hz sine wave 11. Power supply: AC220V 50/60Hz 12. External dimensions: L 1400* W 1040* H 1500 mm 13. Weight: 200KG

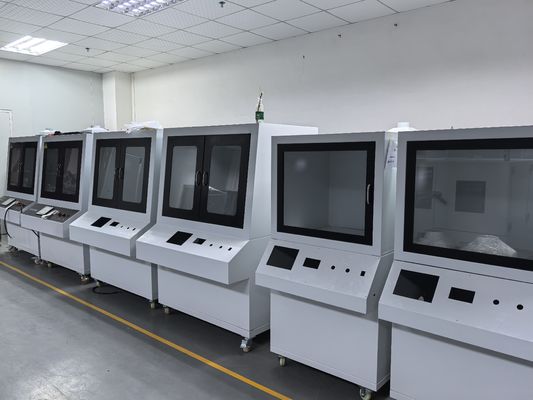

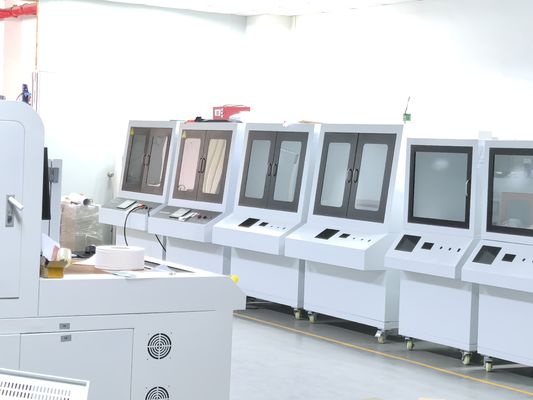

Customer Photos

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Selection of Packaging Materials： Selection of Packaging Materials 1. Use sturdy and durable packaging boxes to prevent equipment
damage caused by collision or compression during transportation. 2. The interior is filled with shockproof materials, such as
foam, air cushion or pearl cotton, to ensure that the equipment will not shake in the packaging box. 3. For fragile or sensitive
components (such as electrodes, display screens, etc.), package and secure them separately to avoid damage during transportation.
Mode of Transport： 1. Prioritize choosing professional logistics and transportation companies to ensure safety and reliability
during transportation. 2. For long-distance transportation, land or sea transportation should be used to avoid the potential
impact of air pressure changes on equipment during air transportation.

Exhibition

FAQ

Q:Are you factory or trading company?
A:We are factory in Dongguan City, Guangdong Province,China.Near Shenzhen or Guangzhou.

Q:What kind of certificate you have?

A:ISO9001 Certification, CE Certification.

Q:What is the lead time of the product?
A: Generally 7-15 days after getting the deposit.

Q:How about the payment term?
A: T/T, by cash, western union, or L/C.

Q:How about the warranty term?
A:1 year warranty,The engineer can teach the machine on the spot.
